Koyo 11206 self-aligning ball bearing

Koyo 11206 self-aligning ball bearing: bore d 30 mm, outside diameter D 62 mm, width 48 mm.

Self-aligning ball bearings · All Koyo part numbers

Figure © Koyo, clipped unaltered from Koyo Ball & Roller Bearings catalog B2001E-6 — Standard Bearings section (B2001E-6b). It illustrates the product family printed there, which may include other sizes. Removed on request.

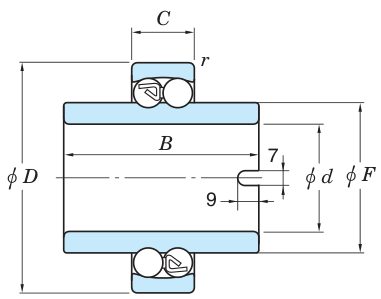

Koyo 11206 — catalogue photograph of the self-aligning ball bearing familyKoyo 11206 — catalogue drawing of the self-aligning ball bearing family
Koyo 11206: bore d 30 mm, outside diameter D 62 mm, width B 48 mm, drawn to scaled 30 mmD 62 mmB 48 mm
Drawing: BearingLookup, to the printed bore d, outside diameter D and width B cited in the specifications below; internal detail is illustrative; seals or shields, if any, are not shown.

Specifications

Bore d30 mm
Outside diameter D62 mm
Width48 mm
Basic dynamic load rating Cr15.6 kN
Basic static load rating C0r4.70 kN
Limiting speed, grease lubrication9900 min-1
Limiting speed, oil lubrication12000 min-1

All specifications: Verified printed in Koyo’s own catalogue
