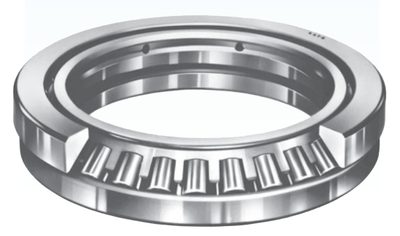

Thrust roller bearings

207 thrust roller bearings from Koyo, IKO & INA: 72 with dimensions & load ratings, 135 with cross-references, each fact cited to the document it was read from. 207 parts · page 1 of 3.

	Part	Manufacturer	Bore d	Outside diameter D	Height T	Basic dynamic load rating Ca (axial)	Crosses to
	AZK15283.5	IKO					Koyo K.81102TVPB, K.81105TVPB
	NTB5578	IKO					Koyo AXK5578, AXK5578A
	NTB90120	IKO					Koyo AXK90120A, AXK90120B
	AXK5578	INA					Koyo AXK5578, AXK5578A
	AXK90120	INA					Koyo AXK90120A, AXK90120B
	K81110TN	INA					Koyo K.81110LPB, K.81110TVPB
	29240	Koyo	200 mm	280 mm	48 mm	641 kN	—
	29244	Koyo	220 mm	300 mm	48 mm	670 kN	—
	29248	Koyo	240 mm	340 mm	60 mm	1030 kN	—
	29252	Koyo	260 mm	360 mm	60 mm	1050 kN	—
	29256	Koyo	280 mm	380 mm	60 mm	1030 kN	—
	29260	Koyo	300 mm	420 mm	73 mm	1330 kN	—
	29264R	Koyo	320 mm	440 mm	73 mm	1780 kN	—
	29268R	Koyo	340 mm	460 mm	73 mm	1800 kN	—
	29272	Koyo	360 mm	500 mm	85 mm	1650 kN	—
	29276	Koyo	380 mm	520 mm	85 mm	1750 kN	—
	29280	Koyo	400 mm	540 mm	85 mm	1980 kN	—
	29284	Koyo	420 mm	580 mm	95 mm	2310 kN	—
	29288	Koyo	440 mm	600 mm	95 mm	2340 kN	—
	29292	Koyo	460 mm	620 mm	95 mm	2460 kN	—
	29296	Koyo	480 mm	650 mm	103 mm	2880 kN	—
	29317R	Koyo	85 mm	150 mm	39 mm	400 kN	—
	29318R	Koyo	90 mm	155 mm	39 mm	412 kN	—
	29320R	Koyo	100 mm	170 mm	42 mm	481 kN	—
	29322R	Koyo	110 mm	190 mm	48 mm	628 kN	—
	29324R	Koyo	120 mm	210 mm	54 mm	759 kN	—
	29326R	Koyo	130 mm	225 mm	58 mm	894 kN	—
	29328R	Koyo	140 mm	240 mm	60 mm	898 kN	—
	29330R	Koyo	150 mm	250 mm	60 mm	965 kN	—
	29332R	Koyo	160 mm	270 mm	67 mm	1150 kN	—
	29334R	Koyo	170 mm	280 mm	67 mm	1190 kN	—
	29336R	Koyo	180 mm	300 mm	73 mm	1380 kN	—
	29338R	Koyo	190 mm	320 mm	78 mm	1570 kN	—
	29340R	Koyo	200 mm	340 mm	85 mm	1810 kN	—
	29344R	Koyo	220 mm	360 mm	85 mm	1840 kN	—
	29348A	Koyo	240 mm	380 mm	85 mm	1790 kN	—
	29352	Koyo	260 mm	420 mm	95 mm	1960 kN	—
	29356	Koyo	280 mm	440 mm	95 mm	2200 kN	—
	29360	Koyo	300 mm	480 mm	109 mm	2470 kN	—
	29364	Koyo	320 mm	500 mm	109 mm	2890 kN	—
	29368R	Koyo	340 mm	540 mm	122 mm	3810 kN	—
	29372R	Koyo	360 mm	560 mm	122 mm	3890 kN	—
	29376R	Koyo	380 mm	600 mm	132 mm	4430 kN	—
	29380R	Koyo	400 mm	620 mm	132 mm	4630 kN	—
	29384R	Koyo	420 mm	650 mm	140 mm	5070 kN	—
	29388R	Koyo	440 mm	680 mm	145 mm	5360 kN	—
	29392	Koyo	460 mm	710 mm	150 mm	4580 kN	—
	294/500R	Koyo	500 mm	870 mm	224 mm	10800 kN	—
	29412R	Koyo	60 mm	130 mm	42 mm	399 kN	—
	29413R	Koyo	65 mm	140 mm	45 mm	450 kN	—
	29414R	Koyo	70 mm	150 mm	48 mm	485 kN	—
	29415R	Koyo	75 mm	160 mm	51 mm	584 kN	—
	29416R	Koyo	80 mm	170 mm	54 mm	631 kN	—
	29417R	Koyo	85 mm	180 mm	58 mm	714 kN	—
	29418R	Koyo	90 mm	190 mm	60 mm	821 kN	—
	29420R	Koyo	100 mm	210 mm	67 mm	911 kN	—
	29422R	Koyo	110 mm	230 mm	73 mm	1120 kN	—
	29424R	Koyo	120 mm	250 mm	78 mm	1300 kN	—
	29426R	Koyo	130 mm	270 mm	85 mm	1490 kN	—
	29428R	Koyo	140 mm	280 mm	85 mm	1560 kN	—
	29430R	Koyo	150 mm	300 mm	90 mm	1730 kN	—
	29434R	Koyo	170 mm	340 mm	103 mm	2180 kN	—
	29436R	Koyo	180 mm	360 mm	109 mm	2450 kN	—
	29438R	Koyo	190 mm	380 mm	115 mm	2790 kN	—
	29440R	Koyo	200 mm	400 mm	122 mm	3060 kN	—
	29444R	Koyo	220 mm	420 mm	122 mm	3160 kN	—
	29448R	Koyo	240 mm	440 mm	122 mm	3260 kN	—
	29452R	Koyo	260 mm	480 mm	132 mm	3760 kN	—
	29456R	Koyo	280 mm	520 mm	145 mm	4560 kN	—
	29460R	Koyo	300 mm	540 mm	145 mm	4670 kN	—
	29468R	Koyo	340 mm	620 mm	170 mm	6190 kN	—
	29472R	Koyo	360 mm	640 mm	170 mm	6440 kN	—
	29476R	Koyo	380 mm	670 mm	175 mm	6780 kN	—
	29480R	Koyo	400 mm	710 mm	185 mm	7750 kN	—
	29484R	Koyo	420 mm	730 mm	185 mm	7960 kN	—
	29488R	Koyo	440 mm	780 mm	206 mm	9100 kN	—
	29492R	Koyo	460 mm	800 mm	206 mm	9360 kN	—
	29496R	Koyo	480 mm	850 mm	224 mm	10900 kN	—
	81102TVPB	Koyo					IKO AZ15289, INA 81102TN
	81103TVPB	Koyo					IKO AZ17309, INA 81103TN
	81104TVPB	Koyo					IKO AZ203510, INA 81104TN
	81105TVPB	Koyo					IKO AZ254211, INA 81105TN
	81106TVPB1	Koyo					IKO AZ304711, INA 81106TN
	81107TVPB	Koyo					IKO AZ355212, INA 81107TN
	81108TVPB	Koyo					IKO AZ406013, INA 81108TN
	81109TVPB	Koyo					IKO AZ456514, INA 81109TN
	81110TVPB	Koyo					IKO AZ507014, INA 81110TN
	81111TVPB	Koyo					IKO AZ557816, INA 81111TN
	81112TVPB	Koyo					IKO AZ608517, INA 81112TN
	81114TVPB	Koyo					IKO AZ709518, INA 81114TN
	81115LPB	Koyo					IKO AZ7510019, INA 81115TN
	81116LPB	Koyo					IKO AZ8010519, INA 81116TN
	81118LPB	Koyo					IKO AZ9012022, INA 81118TN
	81206TVPB	Koyo					IKO AZ305216, INA 81206TN
	81207TVPB	Koyo					IKO AZ356218, INA 81207TN
	81208TVP	Koyo					IKO AZ406819, INA 81208TN
	81211TVPB	Koyo					IKO AZ559025, INA 81211TN
	81212LPB	Koyo					IKO AZ609526, INA 81212TN
	81215LPB	Koyo					IKO AZ7511027, INA 81215TN
	81216LPB	Koyo					IKO AZ8011528, INA 81216TN
