Koyo 2302 self-aligning ball bearing
Koyo 2302 self-aligning ball bearing: bore d 15 mm, outside diameter D 42 mm, width 17 mm.

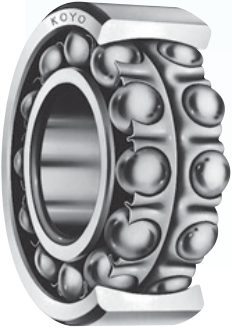

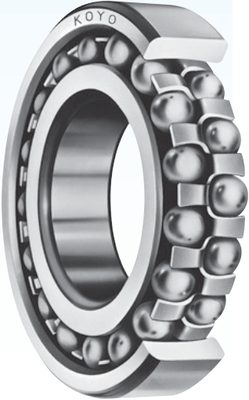

Figure © Koyo, clipped unaltered from Koyo Ball & Roller Bearings catalog B2001E-6 — Standard Bearings section (B2001E-6b). It illustrates the product family printed there, which may include other sizes. Removed on request.
Specifications
| Bore d | 15 mm |
|---|---|
| Outside diameter D | 42 mm |
| Width | 17 mm |
| Basic dynamic load rating Cr | 12.1 kN |
| Basic static load rating C0r | 2.90 kN |
| Limiting speed, grease lubrication | 14000 min-1 |
| Limiting speed, oil lubrication | 20000 min-1 |
All specifications: Verifiedprinted in Koyo’s own catalogue
Same size, other makers and types (15 × 42 × 17 mm)
| Part | Manufacturer | Type |
|---|---|---|
| 4302 | Koyo | deep groove ball bearing |
These match this part on the dimensions each maker prints. A size match is not a stated interchange: check the other specifications before substituting.
Documents
Documents open on the publisher's own site; we link them and never host a copy.
