Koyo 29280 thrust roller bearing
Koyo 29280 thrust roller bearing: bore d 400 mm, outside diameter D 540 mm, height T 85 mm.

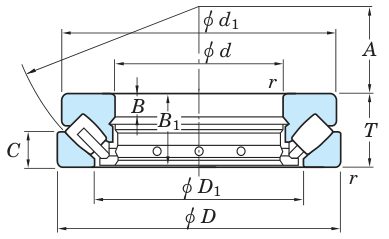

Figure © Koyo, clipped unaltered from Koyo Ball & Roller Bearings catalog B2001E-6 — Standard Bearings section (B2001E-6b). It illustrates the product family printed there, which may include other sizes. Removed on request.
Specifications
| Bore d | 400 mm |
|---|---|
| Outside diameter D | 540 mm |
| Height T | 85 mm |
| Basic dynamic load rating Ca (axial) | 1980 kN |
| Basic static load rating C0a (axial) | 7610 kN |
| Limiting speed, oil lubrication | 700 min-1 |
| Mass | 55.3 kg |
All specifications: Verifiedprinted in Koyo’s own catalogue
