Koyo 3201 angular contact ball bearing
Koyo 3201 angular contact ball bearing: bore d 12 mm, outside diameter D 32 mm, width 15.9 mm.

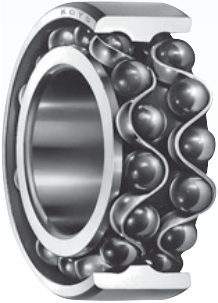

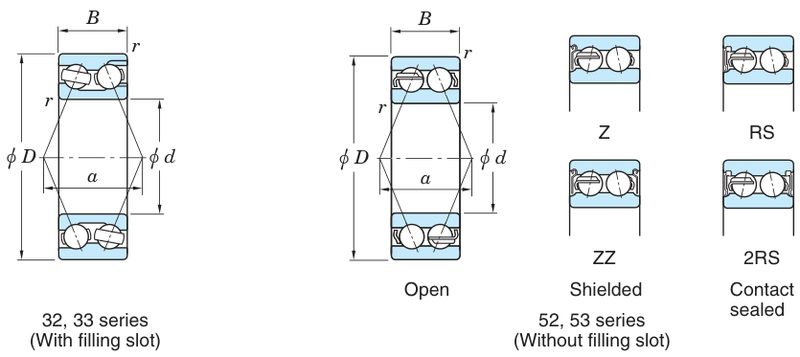

Figure © Koyo, clipped unaltered from Koyo Ball & Roller Bearings catalog B2001E-6 — Standard Bearings section (B2001E-6b). It illustrates the product family printed there, which may include other sizes. Removed on request.
Specifications
| Bore d | 12 mm |
|---|---|
| Outside diameter D | 32 mm |
| Width | 15.9 mm |
| Limiting speed, grease lubrication | 14000 min-1 |
| Limiting speed, oil lubrication | 18000 min-1 |
| Mass | 0.063 kg |
All specifications: Verifiedprinted in Koyo’s own catalogue
