Koyo 4201 deep groove ball bearing
Koyo 4201 deep groove ball bearing: bore d 12 mm, outside diameter D 32 mm, width 14 mm.

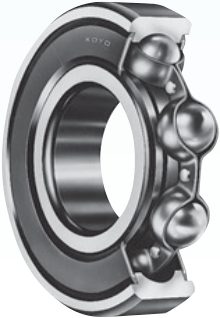

Figure © Koyo, clipped unaltered from Koyo Ball & Roller Bearings catalog B2001E-6 — Standard Bearings section (B2001E-6b). It illustrates the product family printed there, which may include other sizes. Removed on request.
Specifications
| Bore d | 12 mm |
|---|---|
| Outside diameter D | 32 mm |
| Width | 14 mm |
| Basic dynamic load rating Cr | 9.71 kN |
| Basic static load rating C0r | 6.15 kN |
| Limiting speed, grease lubrication | 14000 min-1 |
| Limiting speed, oil lubrication | 18000 min-1 |
| Mass | 0.062 kg |
All specifications: Verifiedprinted in Koyo’s own catalogue
Same size, other makers and types (12 × 32 × 14 mm)
These match this part on the dimensions each maker prints. A size match is not a stated interchange: check the other specifications before substituting.
