Koyo 51113 — catalogue photograph of the thrust ball bearing family

Koyo 51113 thrust ball bearing

Koyo 51113 thrust ball bearing: bore d 65 mm, outside diameter D 90 mm, height T 18 mm.

Thrust ball bearings · All Koyo part numbers

Figure © Koyo, clipped unaltered from Koyo Ball & Roller Bearings catalog B2001E-6 — Standard Bearings section (B2001E-6b). It illustrates the product family printed there, which may include other sizes. Removed on request.

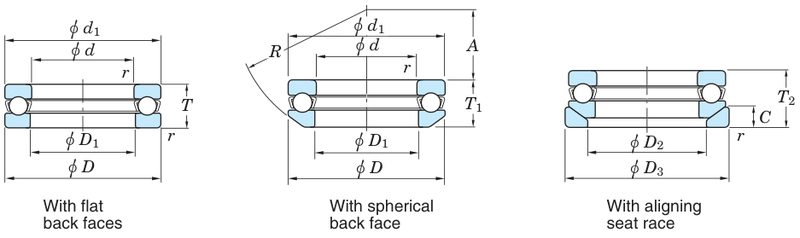

Koyo 51113 — catalogue drawing of the thrust ball bearing family
Koyo 51113: bore d 65 mm, outside diameter D 90 mm, height T 18 mm, drawn to scaled 65 mmD 90 mmT 18 mm
Drawing: BearingLookup, to the printed bore d, outside diameter D and height T cited in the specifications below; internal detail is illustrative.

Specifications

Bore d65 mm
Outside diameter D90 mm
Height T18 mm
Basic dynamic load rating Ca (axial)52.1 kN
Basic static load rating C0a (axial)117 kN
Limiting speed, grease lubrication2400 min-1
Limiting speed, oil lubrication3700 min-1

All specifications: Verified printed in Koyo’s own catalogue
