Koyo 52328 thrust ball bearing
Koyo 52328 thrust ball bearing: bore d 120 mm, outside diameter D 240 mm, height T 140 mm.

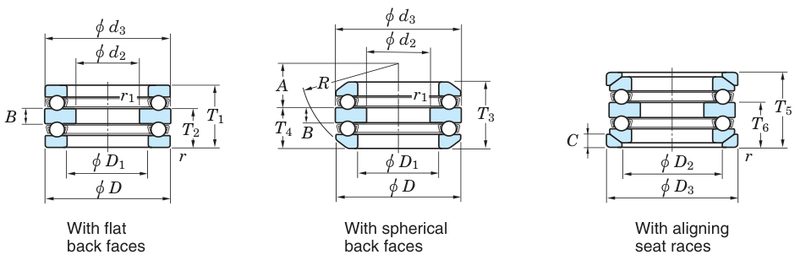

Figure © Koyo, clipped unaltered from Koyo Ball & Roller Bearings catalog B2001E-6 — Standard Bearings section (B2001E-6b). It illustrates the product family printed there, which may include other sizes. Removed on request.
Specifications
| Bore d | 120 mm |
|---|---|
| Outside diameter D | 240 mm |
| Height T | 140 mm |
| Basic dynamic load rating Ca (axial) | 458 kN |
| Basic static load rating C0a (axial) | 1130 kN |
| Limiting speed, grease lubrication | 620 min-1 |
| Limiting speed, oil lubrication | 950 min-1 |
All specifications: Verifiedprinted in Koyo’s own catalogue
