Koyo N340 cylindrical roller bearing
Koyo N340 cylindrical roller bearing: bore d 200 mm, outside diameter D 420 mm, width 80 mm.

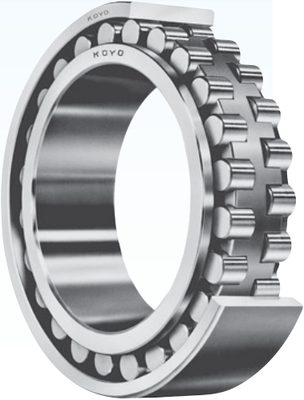

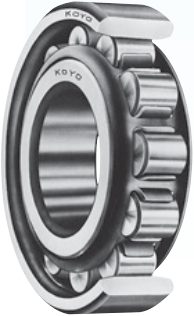

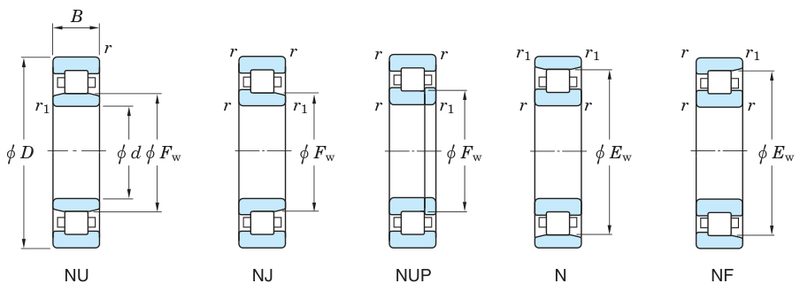

Figure © Koyo, clipped unaltered from Koyo Ball & Roller Bearings catalog B2001E-6 — Standard Bearings section (B2001E-6b). It illustrates the product family printed there, which may include other sizes. Removed on request.
Specifications
| Bore d | 200 mm |
|---|---|
| Outside diameter D | 420 mm |
| Width | 80 mm |
| Basic dynamic load rating Cr | 1220 kN |
| Basic static load rating C0r | 1270 kN |
All specifications: Verifiedprinted in Koyo’s own catalogue
Same size, other makers and types (200 × 420 × 80 mm)
| Part | Manufacturer | Type |
|---|---|---|
| 7340 | Koyo | angular contact ball bearing |
| 7340B | Koyo | angular contact ball bearing |
| 6340 | Koyo | deep groove ball bearing |
These match this part on the dimensions each maker prints. A size match is not a stated interchange: check the other specifications before substituting.
Documents
Documents open on the publisher's own site; we link them and never host a copy.
