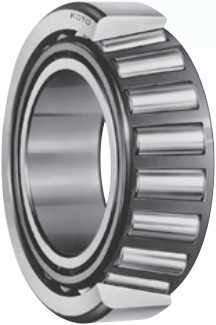

Koyo T2EE040 — catalogue photograph of the metric tapered roller bearing family

Koyo T2EE040 metric tapered roller bearing

Koyo T2EE040 metric tapered roller bearing: bore d 40 mm, outside diameter D 85 mm, width 33 mm.

Metric tapered roller bearings · All Koyo part numbers

Figure © Koyo, clipped unaltered from Koyo Ball & Roller Bearings catalog B2001E-6 — Standard Bearings section (B2001E-6b). It illustrates the product family printed there, which may include other sizes. Removed on request.

Koyo T2EE040 — catalogue photograph of the metric tapered roller bearing familyKoyo T2EE040 — catalogue drawing of the metric tapered roller bearing family
Koyo T2EE040: bore d 40 mm, outside diameter D 85 mm, width T 33 mm, drawn to scaled 40 mmD 85 mmT 33 mm
Drawing: BearingLookup, to the printed bore d, outside diameter D and width T cited in the specifications below; internal detail is illustrative.

Specifications

Bore d40 mm
Outside diameter D85 mm
Width33 mm
Basic dynamic load rating Cr143 kN
Basic static load rating C0r143 kN
Limiting speed, grease lubrication4800 min-1
Limiting speed, oil lubrication6400 min-1
Mass0.900 kg

All specifications: Verified printed in Koyo’s own catalogue
