Koyo bearings

5,317 Koyo part numbers published here: 4,798 with dimensions & load ratings, 885 with cross-references, each fact cited to the document it was read from. 5,317 parts · page 14 of 54.

	Part	Category	Bore d	Outside diameter D	Width	Crosses to

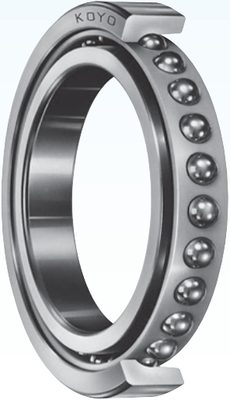

	3306	angular contact ball bearing	30 mm	72 mm	30.2 mm	—
	3307	angular contact ball bearing	35 mm	80 mm	34.9 mm	—
	3308	angular contact ball bearing	40 mm	90 mm	36.5 mm	—
	3309	angular contact ball bearing	45 mm	100 mm	39.7 mm	—
	3310	angular contact ball bearing	50 mm	110 mm	44.4 mm	—
	33108JR	metric tapered roller bearing	40 mm	75 mm	26 mm	—
	33109JR	metric tapered roller bearing	45 mm	80 mm	26 mm	—
	3311	angular contact ball bearing	55 mm	120 mm	49.2 mm	—
	33110JR	metric tapered roller bearing	50 mm	85 mm	26 mm	—
	33111JR	metric tapered roller bearing	55 mm	95 mm	30 mm	—
	33112JR	metric tapered roller bearing	60 mm	100 mm	30 mm	—
	33113JR	metric tapered roller bearing	65 mm	110 mm	34 mm	—
	33114JR	metric tapered roller bearing	70 mm	120 mm	37 mm	—
	33115JR	metric tapered roller bearing	75 mm	125 mm	37 mm	—
	33116JR	metric tapered roller bearing	80 mm	130 mm	37 mm	—
	33117JR	metric tapered roller bearing	85 mm	140 mm	41 mm	—
	33118JR	metric tapered roller bearing	90 mm	150 mm	45 mm	—
	33119JR	metric tapered roller bearing	95 mm	160 mm	49 mm	—
	3312	angular contact ball bearing	60 mm	130 mm	54 mm	—
	33120JR	metric tapered roller bearing	100 mm	165 mm	52 mm	—
	33121JR	metric tapered roller bearing	105 mm	175 mm	56 mm	—
	33122JR	metric tapered roller bearing	110 mm	180 mm	56 mm	—
	33124JR	metric tapered roller bearing	120 mm	200 mm	62 mm	—
	3313	angular contact ball bearing	65 mm	140 mm	58.7 mm	—
	3314	angular contact ball bearing	70 mm	150 mm	63.5 mm	—
	3315	angular contact ball bearing	75 mm	160 mm	68.3 mm	—
	3316	angular contact ball bearing	80 mm	170 mm	68.3 mm	—
	3317	angular contact ball bearing	85 mm	180 mm	73 mm	—
	3318	angular contact ball bearing	90 mm	190 mm	73 mm	—
	3319	angular contact ball bearing	95 mm	200 mm	77.8 mm	—
	332/28JR	metric tapered roller bearing	28 mm	58 mm	24 mm	—
	332/32JR	metric tapered roller bearing	32 mm	65 mm	26 mm	—
	3320	angular contact ball bearing	100 mm	215 mm	82.6 mm	—
	33205JR	metric tapered roller bearing	25 mm	52 mm	22 mm	—
	33206JR	metric tapered roller bearing	30 mm	62 mm	25 mm	—
	33207JR	metric tapered roller bearing	35 mm	72 mm	28 mm	—
	33208JR	metric tapered roller bearing	40 mm	80 mm	32 mm	—
	33209JR	metric tapered roller bearing	45 mm	85 mm	32 mm	—
	3321	angular contact ball bearing	105 mm	225 mm	87.3 mm	—
	33210JR	metric tapered roller bearing	50 mm	90 mm	32 mm	—
	33211JR	metric tapered roller bearing	55 mm	100 mm	35 mm	—
	33212JR	metric tapered roller bearing	60 mm	110 mm	38 mm	—
	33213JR	metric tapered roller bearing	65 mm	120 mm	41 mm	—
	33214JR	metric tapered roller bearing	70 mm	125 mm	41 mm	—
	33215JR	metric tapered roller bearing	75 mm	130 mm	41 mm	—
	33216JR	metric tapered roller bearing	80 mm	140 mm	46 mm	—
	33217JR	metric tapered roller bearing	85 mm	150 mm	49 mm	—
	33218JR	metric tapered roller bearing	90 mm	160 mm	55 mm	—
	33219JR	metric tapered roller bearing	95 mm	170 mm	58 mm	—
	3322	angular contact ball bearing	110 mm	240 mm	92.1 mm	—
	33220JR	metric tapered roller bearing	100 mm	180 mm	63 mm	—
	33221JR	metric tapered roller bearing	105 mm	190 mm	68 mm	—

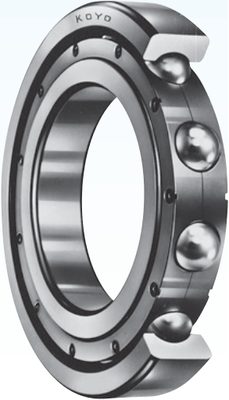

	4200	deep groove ball bearing	10 mm	30 mm	14 mm	—
	4201	deep groove ball bearing	12 mm	32 mm	14 mm	—
	4202	deep groove ball bearing	15 mm	35 mm	14 mm	—
	4203	deep groove ball bearing	17 mm	40 mm	16 mm	—
	4204	deep groove ball bearing	20 mm	47 mm	18 mm	—
	4205	deep groove ball bearing	25 mm	52 mm	18 mm	—
	4206	deep groove ball bearing	30 mm	62 mm	20 mm	—
	4207	deep groove ball bearing	35 mm	72 mm	23 mm	—
	4208	deep groove ball bearing	40 mm	80 mm	23 mm	—
	4209	deep groove ball bearing	45 mm	85 mm	23 mm	—
	4210	deep groove ball bearing	50 mm	90 mm	23 mm	—
	4211	deep groove ball bearing	55 mm	100 mm	25 mm	—
	4212	deep groove ball bearing	60 mm	110 mm	28 mm	—
	4213	deep groove ball bearing	65 mm	120 mm	31 mm	—
	4214	deep groove ball bearing	70 mm	125 mm	31 mm	—
	4215	deep groove ball bearing	75 mm	130 mm	31 mm	—
	4302	deep groove ball bearing	15 mm	42 mm	17 mm	—
	4303	deep groove ball bearing	17 mm	47 mm	19 mm	—
	4304	deep groove ball bearing	20 mm	52 mm	21 mm	—
	4305	deep groove ball bearing	25 mm	62 mm	24 mm	—
	4306	deep groove ball bearing	30 mm	72 mm	27 mm	—
	4307	deep groove ball bearing	35 mm	80 mm	31 mm	—
	4308	deep groove ball bearing	40 mm	90 mm	33 mm	—
	4309	deep groove ball bearing	45 mm	100 mm	36 mm	—
	4310	deep groove ball bearing	50 mm	110 mm	40 mm	—
	4311	deep groove ball bearing	55 mm	120 mm	43 mm	—
	4312	deep groove ball bearing	60 mm	130 mm	46 mm	—
	4313	deep groove ball bearing	65 mm	140 mm	48 mm	—
	4314	deep groove ball bearing	70 mm	150 mm	51 mm	—
	4315	deep groove ball bearing	75 mm	160 mm	55 mm	—

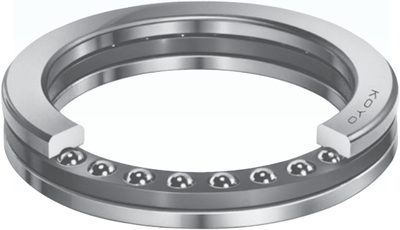

	51100	thrust ball bearing	10 mm	24 mm		—
	51101	thrust ball bearing	12 mm	26 mm		—
	51102	thrust ball bearing	15 mm	28 mm		—
	51103	thrust ball bearing	17 mm	30 mm		—
	51104	thrust ball bearing	20 mm	35 mm		—
	51105	thrust ball bearing	25 mm	42 mm		—
	51106	thrust ball bearing	30 mm	47 mm		—
	51107	thrust ball bearing	35 mm	52 mm		—
	51108	thrust ball bearing	40 mm	60 mm		—
	51109	thrust ball bearing	45 mm	65 mm		—
	51110	thrust ball bearing	50 mm	70 mm		—
	51111	thrust ball bearing	55 mm	78 mm		—
	51112	thrust ball bearing	60 mm	85 mm		—
	51113	thrust ball bearing	65 mm	90 mm		—
	51114	thrust ball bearing	70 mm	95 mm		—
	51115	thrust ball bearing	75 mm	100 mm		—
	51116	thrust ball bearing	80 mm	105 mm		—
	51117	thrust ball bearing	85 mm	110 mm		—
